Product Description

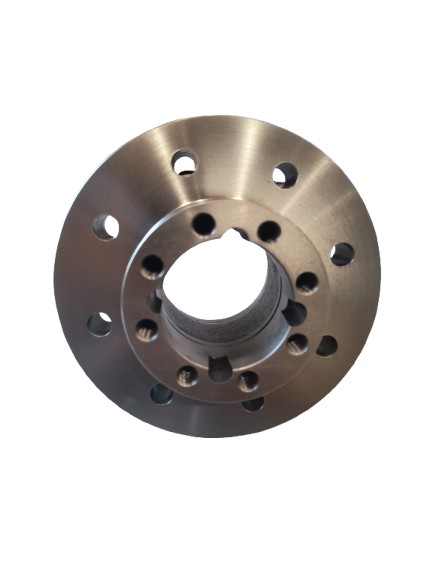

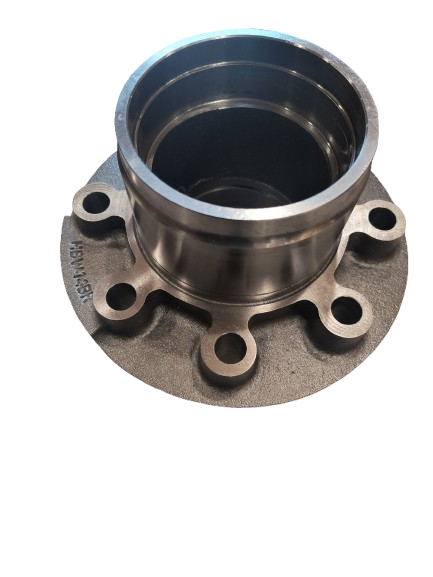

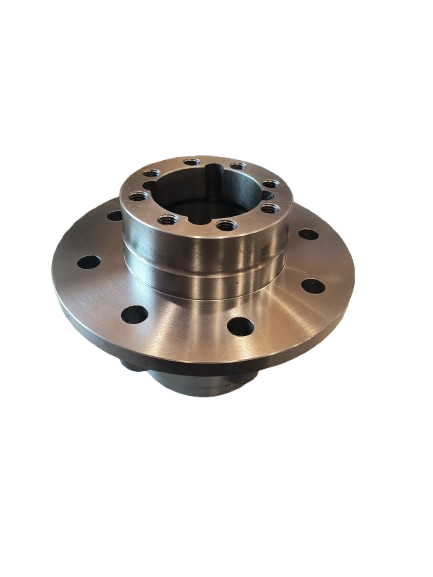

Brand NEW GM 14 Bolt Full floater hub. If you have a damaged, missing or ugly hub, this is the fix! This hub fits GM 14B 10.5" ring gear axles 73-98 GM Full floater housings. Single Rear Wheel (SRW). This design features an extended hub centric surface. This has several benefits:
- If customizing the hub for a slip-over drum, with an OEM wheel, the wheel is still hub centric for safety and capacity.
- This hub can be used with dual wheels
- If using a 1/2" wheel spacer, the wheel remains hub centric
Maintains stock width on GM SRW axles. Can be used to convert a 14 cab and chassis DRW to SRW. If installing on a cab and chassis rear (63.5 wms-wms) this hub moves the wheel mounting surface outboard by 1.75" per side resulting in 67" wms-wms. You will need to make changes to the brakes if doing this conversion. We recommend our deluxe disc conversion here: Deluxe rear disc brake conversion kit
You may also move/replace your brake flange with these: 14 Bolt Brake Flange
This hub fits the GM "long" spindle. Compatible with drum or disc brake applications.
Select the radio button to order the hub painted in chassis black.
Need Studs? These work well: HBW 563 Wheel Stud
Hub comes without bearings or races. If you would like a quality bearing kit, add one to your cart here: AK GM14T - Axle bearing & seal kit for 10.5" GM 14 bolt truck
